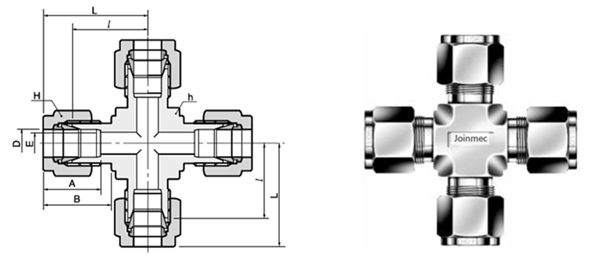

JX Croce Intermedio Union Cross Connector
| Connects fractional tube | |||||||||||
|
Part No |
Tube O.D. |
E |
Width across flat |
A |
B |
l |
L | ||||
|
D |
h |
H | |||||||||
|
in |
mm |
Min |
in |
mm |
in |
mm | |||||
|
JX-1 |
1/16 |
1.59 |
1.27 |
3/8 |
9.52 |
5/16 |
7.93 |
8.63 |
10.92 |
14 |
17.88 |
|
JX-2 |
1/8 |
3.17 |
2.28 |
3/8 |
9.52 |
7/16 |
11.11 |
12.7 |
15.24 |
15.74 |
22.35 |
|
JX-3 |
3/16 |
4.76 |
3.04 |
1/2 |
12.7 |
1/2 |
12.7 |
13.71 |
16 |
17.78 |
24.38 |
|
JX-4 |
1/4 |
6.35 |
4.82 |
1/2 |
12.7 |
9/16 |
14.28 |
15.24 |
17.78 |
19.55 |
26.92 |
|
JX-5 |
5/16 |
7.93 |
6.35 |
1/2 |
12.7 |
5/8 |
15.87 |
16.25 |
18.54 |
21.33 |
28.7 |
|
JX-6 |
3/8 |
9.52 |
7.11 |
11/16 |
17.46 |
11/16 |
17.46 |
16.76 |
19.3 |
23.11 |
30.48 |
|
JX-8 |
1/2 |
12.7 |
10.41 |
13/16 |
20.64 |
7/8 |
22.22 |
22.86 |
21.84 |
25.9 |
36.06 |
|
JX-10 |
5/8 |
15.87 |
12.7 |
13/16 |
20.64 |
1 |
25.4 |
24.38 |
21.84 |
28.7 |
38.8 |
|
JX-12 |
3/4 |
19.05 |
15.74 |
1 |
25.4 |
1-1/8 |
28.58 |
24.38 |
21.84 |
29.71 |
39.87 |
|
JX-14 |
7/8 |
22.22 |
18.28 |
1-1/4 |
31.75 |
1-1/4 |
31.75 |
25.9 |
21.84 |
34.54 |
44.7 |
|
JX-16 |
1 |
25.4 |
22.35 |
1-27/64 |
36.12 |
1-1/2 |
38.1 |
31.24 |
26.41 |
36.83 |
49.02 |
|
JX-20 |
1-1/4 |
31.75 |
27.68 |
1-11/16 |
42.86 |
1-7/8 |
47.63 |
41.14 |
38.86 |
44.5 |
66.54 |
|
JX-24 |
1-1/2 |
38.1 |
34.03 |
2 |
50.8 |
2-1/4 |
57.15 |
50.03 |
45.21 |
50.8 |
77.97 |
|
JX-32 |
2 |
50.8 |
45.97 |
2-3/4 |
69.85 |
3 |
76.2 |
67.56 |
62.73 |
69.8 |
107.18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Connects metric tube |
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
|
| |||
|
Part No |
Tube O.D. |
E |
Width across flat |
|
A |
B |
l |
L |
|
|
|
|
D |
Min. |
h |
H |
|
|
| |||||
|
JX-3M |
3 |
2.4 |
9.5 |
12 |
12.9 |
15.3 |
15.7 |
22.3 |
|
|
|
|
JX-4M |
4 |
2.4 |
12.7 |
12 |
13.7 |
16.1 |
18.8 |
25.4 |
|
|
|
|
JX-6M |
6 |
4.8 |
12.7 |
14 |
15.3 |
17.7 |
19.6 |
27 |
|
|
|
|
JX-8M |
8 |
6.4 |
14.3 |
16 |
16.2 |
18.6 |
21.3 |
28.8 |
|
|
|
|
JX-10M |
10 |
7.9 |
17.5 |
19 |
17.2 |
19.5 |
23.9 |
31.5 |
|
|
|
|
JX-12M |
12 |
9.5 |
20.6 |
22 |
22.8 |
22 |
25.9 |
36 |
|
|
|
|
JX-15M |
15 |
11.9 |
25.4 |
25 |
24.4 |
22 |
28.7 |
38.8 |
|
|
|
|
JX-16M |
16 |
12.7 |
25.4 |
25 |
24.4 |
22 |
28.7 |
38.8 |
|
|
|
|
JX-18M |
18 |
15.1 |
27 |
30 |
24.4 |
22 |
29.7 |
39.8 |
|
|
|
|
JX-20M |
20 |
15.9 |
31.8 |
32 |
26 |
22 |
32.5 |
42.6 |
|
|
|
|
JX-22M |
22 |
18.3 |
31.8 |
32 |
26 |
22 |
32.5 |
42.6 |
|
|
|
|
JX-25M |
25 |
21.8 |
36 |
38 |
31.3 |
26.5 |
36.8 |
49.1 |
|
|
|
|
JX-28M |
28 |
21.8 |
41 |
46 |
36.6 |
36.6 |
43.2 |
64 |
|
|
|
|
JX-32M |
32 |
28.6 |
46 |
50 |
42 |
41.6 |
49.3 |
72.3 |
|
|
|
|
JX-38M |
38 |
33.7 |
55 |
60 |
49.4 |
47.9 |
56.4 |
84 |
|
|
|
