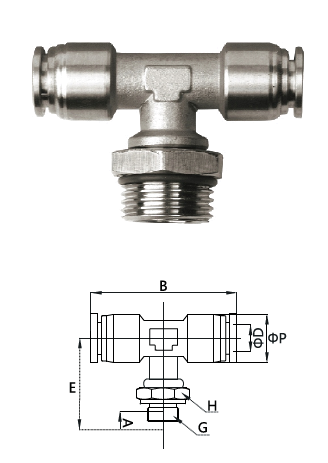

JB-PB-G T Type Brass Fitting
Model
ΦD
E
B
ΦP
A
G
H
JB-PB-04-G01
4
24
46
10.5
5.5
G1/8
14
JB-PB-04-G02
4
27
46
10.5
6.5
G1/4
17
JB-PB-06-G01
6
25
48
12.5
5.5
G1/8
14
JB-PB-06-G02
6
28
48
12.5
6.5
G1/4
17
JB-PB-06-G03
6
29
48
12.5
7.5
G3/8
21
JB-PB-06-G04
6
34
48
12.5
9
G1/2
24
JB-PB-08-G01
8
28
54
14.5
5.5
G1/8
14
JB-PB-08-G02
8
31
54
14.5
6.5
G1/4
17
JB-PB-08-G03
8
33
54
14.5
7.5
G3/8
21
JB-PB-08-G04
8
35
54
14.5
9
G1/2
24
JB-PB-10-G01
10
33
61
17.5
5.5
G1/8
17
JB-PB-10-G02
10
36
61
17.5
6.5
G1/4
17
JB-PB-10-G03
10
37
61
17.5
7.5
G3/8
21
JB-PB-10-G04
10
41
61
17.5
9
G1/2
24
JB-PB-12-G02
12
38
68
20.5
6.5
G1/4
21
JB-PB-12-G03
12
38
68
20.5
7.5
G3/8
21
JB-PB-12-G04
12
41
68
20.5
9
G1/2
24
JB-PB-14-G02
14
39.5
76
22
6.5
G1/4
24
JB-PB-14-G03
14
40
76
22
7.5
G3/8
24
JB-PB-14-G04
14
43
76
22
9
G1/4
24
JB-PB-16-G02
16
39.5
76
24
6.5
G1/4
24
JB-PB-16-G03
16
40
76
24
7.5
G3/8
24
JB-PB-16-G04
16
43
76
24
9
G1/2
24
